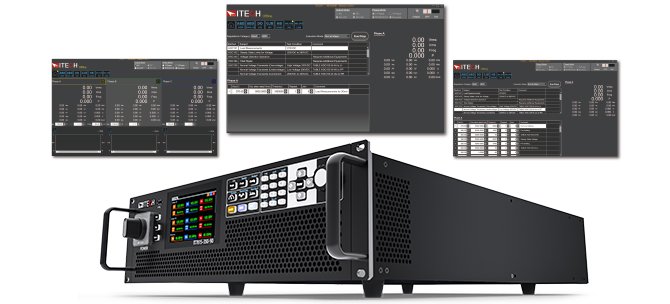

APS4000 Simulation Software for Power System of Aerospace and Ship
APS4000 aviation and ship regulations software can be used with ITECH IT7800/IT7900P high performance programmable AC/DC power supply to provide 5kVA-960kVA and 16Hz~2400Hz power supply output for electric equipment. The software has built-in mainstream military and commercial aircraft power supply characteristics standards, such as MIL-STD-704, DO160, A350, A380, GJB181B, HB20326 and MIL1399, etc., which can realistically reproduce a variety of AC and DC power supply systems in the aviation field, including DC 270Vdc, 28Vdc, single-phase AC 115V/400Hz, three-phase AC 115V/400Hz and wide frequency range 360Hz-800Hz.The APS4000 includes four models, the APS4000-ASTD, APS4000-B787&AMD, APS4000-AVALL and APS4000 1399, which can cover different applications. The user-friendly GUI of the software helps to quickly select test items and complete the test.
Product Features
♦ Adopt next generation SiC technology, high power density design
♦ 15kVA in 3U, master-slave parallel up to 960kVA
♦ Voltage range: 0-350V L-N, reverse mode up to 700V L-N
♦ Up to 50th harmonic simulation and analysis function
♦ Four output modes: AC/DC/AC+DC/DC+AC
♦ Single-phase/three-phase output
♦ Powerful power supply waveform simulation function: LIST / user-defined waveform
♦ Built-in EC61000-4-11/4-13/4-14/4-28 regulation waveform
♦ Built-in USB/CAN/LAN/Digital IO communication interface
♦ User-friendly GUI, easy to operate
♦ Provide MIL-STD-704, DO160, A350, A380, GJB181B, HB20326, B787 and AMD regulatory standards
♦ Provide MIL 1399 power supply adaptability test standard for marine electrical equipment
♦ Provide single/three-phase output parameter setting and measurement interface
♦ Flexibility to run all test items or specified number of test items
♦ Automatic generation of test reports
Functions and Advantages
Application
♦ Cabin entertainment systems
♦ Aircraft lighting system
♦ Airborne radar system
♦ Communication and navigationSystems
♦ Flight recording system
♦ Cockpit display system
♦ Aircraft control systems
♦ Atmospheric data and inertial reference systems

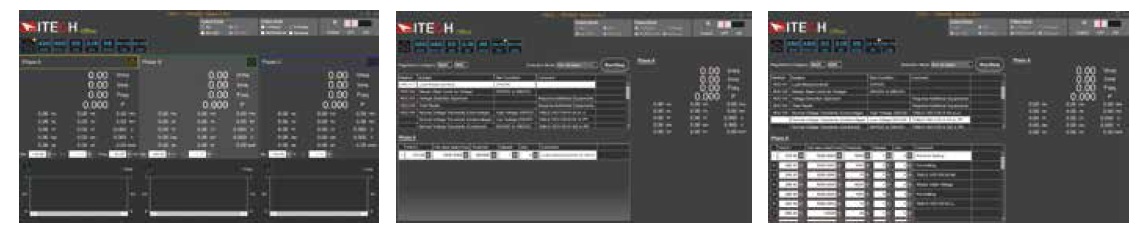

GUI of APS4000
Install the optional software APS4000 and connect it to ITECH AC/DC power supply, you just need several simple procedures to complete various
avionics tests.
1.Select the regulatory standard, such as MIL-STD 704.
2.Select the appropriate revision number, such as MIL704 RevF or RevE
3.Select the correct operating mode, DC or AC.
4.Select test serial number, such as HD101，HD102…
5.Select running mode: Run all steps/ Run single step/Loop single step.
6.Click and start the test.
