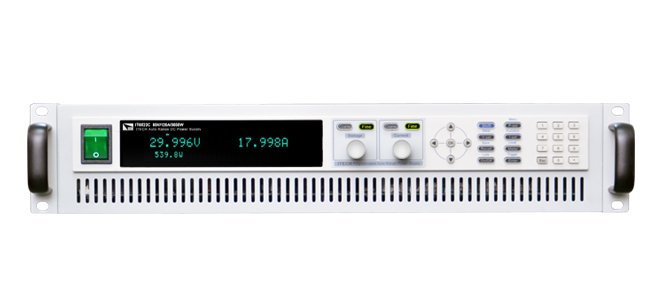

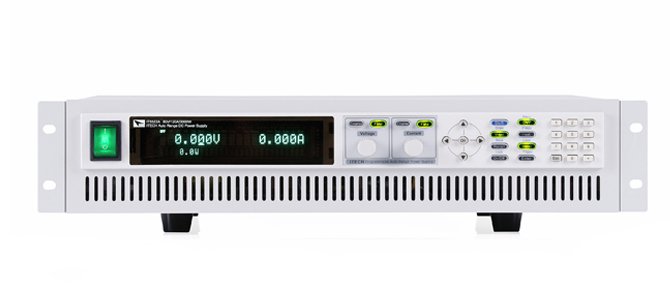

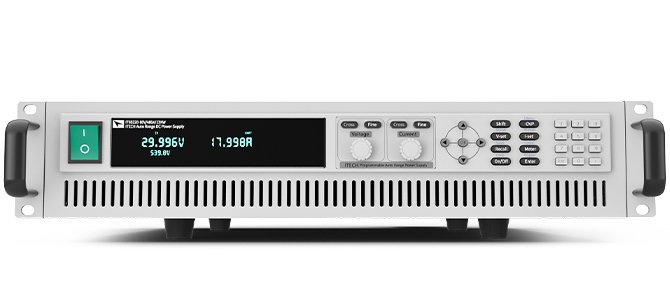

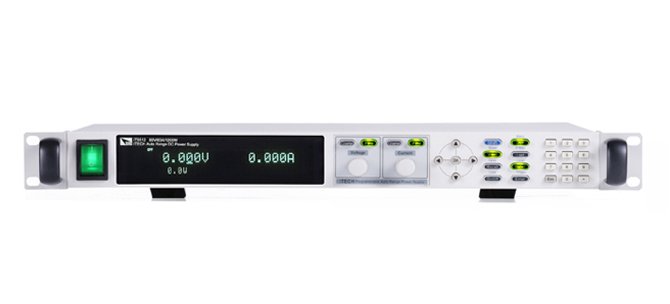

IT6500 Wide-range High-power DC Power Supply
IT6500 series wide range high powerDC power supply provides users with a very wide range of choices, the wholeseries includes from 800W to 6kW, as well as up to 1000V, 240A output range, atthe same time has an ultra-wide range of voltage and current. IT6500C serieshas rich measurement and high-speed response function, while IT6500D series has high performance and stable outputfunction, users can easily choose according to their requirements. IT6500 canbe used in a variety of applications, including automotive, green energy, highspeed testing, high power testing, etc. It is a dc power supply with richfeatures, excellent performance and a wide range of applications.
Product Features
♦ Support multiple power supplies paralleling in Master-Slave mode and ensures each power supply equally shares the load current. Extension capacity is up to 30kW output.
♦ Support various modes (CV/CC/CP), independent edge setting
♦ Adjustable rising and falling time
♦ Built-in DIN 40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO2184 standard voltage curve for automobile power net *2
♦ Support solar panel I-V curve simulation function *3
♦ LIST mode programming
♦ Variable output impendence function *1
♦ Low ripple and low noise
♦ High resolution and high accuracy
♦ Support multiple protections (Power Supply: OVP,OCP,OPP; Vsense Reverse protection, turn-off protection, input under voltage protection
♦ Remote sense function
♦ Analog control interfaces
♦ Built-in USB/RS232/CAN/LAN interfaces
*1 Limit IT6500C series have this function
*2 Limit IT6500C series have this function, IT6512 and IT6513 are built-in DIN 40839, ISO-16750-2
*3 Optional SAS1000 software
Functions and Advantages
Fast curve changing without overshoot CC & CV Priority Function
To conquer the demanding testing requirements existing for a long time in various applications, ITECH developed an innovative industry-leading CV & CC priority concept. The IT6500 is available for high-speed test applications with-out overshoot. Users can choose the desired output mode. Voltage high-speed mode or current no overshoot mode by choosing the loop response speed and loop operation mode. It is suitable for high-power integrated circuit test, charging / discharging test, solar array simulation and the transient simulation / characteristic of automotive electronics.
Fast response
Independent settable slew rate in different modes
IT6500C series can be used as a power supply and an electronic load. As a power supply, CV, CC, CP modes are available. As an electronic load, CC and CP mode are available. IT6500C supports independent adjustable rise/fall time setting in different modes.
For every single model of IT6500C/D series, no matter it is a single
unit or multiple units paralleled together, the rise and fall time of each power supply in IT6500C/D series are the same. Take IT6522C as an example:
1) Within 30V voltage range, with 0-90% load, up and down speed
<3ms
2) Falling time of no load with voltage at full scale:
Without power dissipater unit, falling time <30ms
With power dissipater unit, falling time <5ms
3) Dynamic response time <3ms
Options & Accessories
-
IT-E9005(Optional)ITECH Warranty up to 5 years
IT-E9003(Optional)ITECH Warranty up to 3 years
AC power cord (accessory)AC power cord (accessory)
USBFor USB port communication
SAS1000 Solar Array Simulation…Adopt IT6500C series equipped …

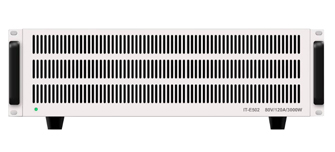

IT-E500 power dissipater (disc…Provide greater discharge capa…
IT-E31220-OO (Optional)120A/2m/round terminal, a pair…-
IT-E30615-OO (Optional)60A/1.5m/round terminal, a pai…
-
IT-E32420-OO (Optional)240A/2m/round terminal, a pair…
-
IT-E32410-OO (Optional)240A/1m/round terminal, a pair…
-
IT-E33620-OO (Optional)360A/2m/round terminal, a pair…
IT-E30110-AB (Optional)10A/1m/Alligator clip – Banana…
IT-E30110-BB (Optional)10A/1m/Banana plug – Banana pl…
IT-E30110-BY (Optional)10A/1m/Banana plug – Y termina…
IT-E30312-YY (Optional)30A/1.2m/Y terminal, a pair of…-
IT-E30320-YY (Optional)30A/2m/Y terminal, a pair of r…
